Dhollandia Van Liftgates
LSPZ 1350 LBS
The Dhollandia LSP/LSPZ is the pioneering external liftgate in the liftgate industry, specifically engineered for cargo vans. Dhollandia continues to lead innovations in this field, offering the largest possible platform surface for efficient cargo handling.
- Vertically Folding Platform: Allows the operator to use one of the rear vehicle doors even when the platform is stowed.
- Innovative Lift Arms: Designed for vans with a significant vertical distance between the loading floor and the underside of the doors, eliminating the need to cut into the steel construction of the body.
- Compact and Lightweight: Ideal for factory-built panel vans requiring a space-efficient solution.
- Externally Mounted: Does not occupy any useful space inside the vehicle.
- Largest Possible Platform Surface: Suitable for all types of cargo, including pallets.
- Available Options: Half-width platform or vertically foldable platform.
Platform Sizes:
- 71″ x 57″
LSP 1350 LBS
The Dhollandia LSP/LSPZ is the pioneering external liftgate in the liftgate industry, specifically engineered for cargo vans. Dhollandia continues to lead innovations in this field, offering the largest possible platform surface for efficient cargo handling.
- Single Piece Platform: Can be ordered with a rear door replacement kit to use the lift platform in place of the vehicle’s OEM rear doors.
- Innovative Lift Arms: Designed for vans with a significant vertical distance between the loading floor and the underside of the doors, eliminating the need to cut into the steel construction of the body.
- Compact and Lightweight: Ideal for factory-built panel vans requiring a space-efficient solution.
Installation and Compatibility:
- Easy Installation: No cut-outs required on the vehicle chassis.
- Quick-Fit Mounting Plates: Available for most vehicle brands, accommodating various wheelbases and overhangs.
- Maximum Ground Clearance: Ensures optimal performance and safety.
Platform Sizes:
- 71″ x 57″
DH-P2.05 750-1650 LBS
The Dhollandia DH-P2 is a fully automatic parallel arm lift designed for mounting inside the cargo space of vehicles. This versatile lift can be installed at the rear or side doors of a wide range of factory-built panel vans and box vans.
- Reinforced Construction: Equipped with two lift arms for additional lift capacity and maximum platform stability.
- Flat Platform: Facilitates easy loading of goods such as carts, packages, and small machinery with minimal effort.
- Minimal Platform Angle: Ensures comfortable and easy access.
-
Performance and Reliability:
- Mounted Inside the Vehicle Body: No constraints regarding available mounting space and ground clearance.
- 1650 lbs Configuration: Platform supported by steel cables for enhanced stability.
- Vertical Split Platform Configuration: Provides ease of access to the vehicle.
Platform Sizes:
- 45″ x 32″
- 53″ x 32″
- 63″ x 32″ (36″ width also available)

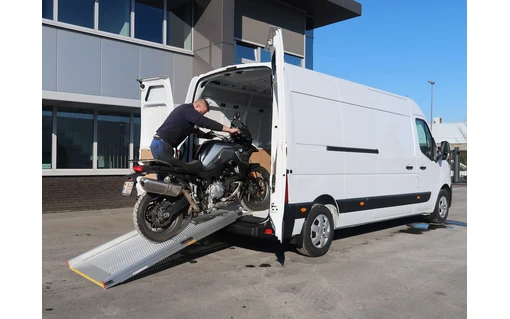

DH-AI01 / AI02 850 LBS
The Dhollandia DH-AI0* portable aluminum ramp offers maximum flexibility for a wide variety of vehicles without requiring special adaptations. These ramps can be conveniently carried in the vehicle’s loading space or stored at the load or delivery point, ensuring versatile usage.
- Lightweight Aluminum Construction: Allows for quick, easy, and safe operation by a single person.
- Designed for Passenger Use: Ideal for wheelchair occupants, but also suitable for loading and unloading cargo and small machines up to a maximum of 880 lbs.
- Platform Options:
- DH-AI02: Equipped with a foldable 2-part platform.
- DH-AI01: Features a rigid 1-piece platform.
Platform Specifications:
- Mesh Aluminum Surface: Efficiently evacuates rain, dirt, and mud, providing excellent anti-slip protection.
- Optional Perforated Aluminum Plate: Available for enhanced functionality (option OAP822.1).
DH-AI12 / AI13 850-2200 LBS
The Dhollandia DH-AI* manually foldable ramps are designed for carefree use in a wide range of Multi Passenger Vehicles, minibuses, and vans. Mounted inside the vehicle just behind the doors, these ramps offer maximum flexibility and ease of operation.
- Lightweight Aluminum Construction: Ensures quick, easy, and safe operation by a single person, aided by gas cylinders.
- Versatile Use: Suitable for wheelchair occupants and for loading and unloading cargo and small machines up to a maximum of 400 kg (or 1000 kg for the DH-AI12.10).
- Anodized Aluminum: Ensures maximum attenuation of vibration noises while driving.
- Lightweight Design: Negligible impact on the vehicle’s payload, making it extremely easy to handle.
Platform Options:
- DH-AI12: Equipped with a 2-part platform.
- DH-AI13: Features a 3-part platform.
Platform Specifications:
- Mesh Aluminum Surface: Efficiently evacuates rain, dirt, and mud, providing excellent anti-slip protection.
- Optional Perforated Aluminum Plate: Available for enhanced functionality (option OAP822.1).

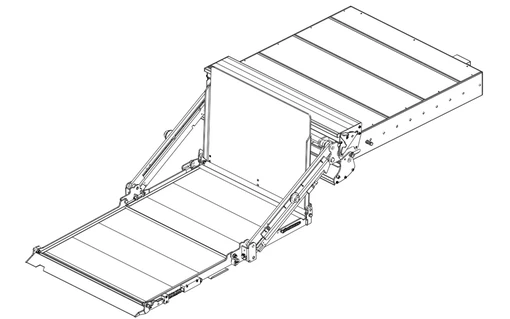

DH-C001.03 650 LBS
The Dhollandia DH-C001.03 is a compact cassette lift designed specifically for panel vans. This innovative lift stows neatly in a sealed cassette box under the vehicle’s loading floor, keeping the rear door access free and preserving interior space.
- Sealed Cassette Box: Keeps the platform stowed neatly under the vehicle, maintaining free access through the rear doors.
- Power Drive Feature: Automates the deploy and stow functions for ease of use.
- Safety Yellow Platform Borders: Enhances visibility and safety during operation.
- Manual Opening: Requires manual opening of the platform by hand.
-
Platform Specifications:
- Full Aluminum Platform: Includes both fixed and folding sections.
- Manually Foldable Platform: Significantly reduces the required mounting space.
- Automatic Bridge Plate, Toe-Guard, and Load Restraint: Ensures safe and efficient loading and unloading.
- True Level Ride Style Platform Action: Provides a smooth and stable lifting experience.
Platform Sizes:
- 50″ x 30″ with automatic bridge plate for vehicle entry
- 58″ x 30″ with automatic bridge plate for vehicle entry

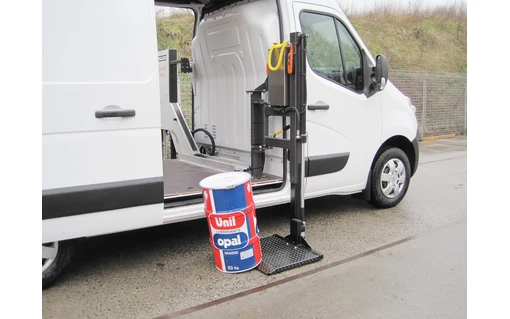

SH-VZG.01 350 LBS
The Dhollandia DH-VZG is a safe and easy-to-use compact interior lift, designed to handle small loads such as boxes, barrels, and small machinery. This versatile lift offers maximum flexibility and efficiency for various cargo handling needs.
- Robust Steel Platform: Features a fixed leading edge and a very flat surface for easy loading and unloading.
- Single Column Design: Mounted to the floor and side of the vehicle body, providing stability and reliability.
- Telescopic Tubular Construction: Equipped with a single acting hydraulic lift cylinder for smooth operation.
-
Special Adaptation for Gas Bottles:
- Option OAU803: Includes a smaller platform (315×340 mm) and a bottle holder to secure gas bottles in a vertical position.
Hydraulic Features:
- Single Acting Lift Cylinder: Ensures reliable lifting performance.
- Compact Pump Unit: Available in 12V or 24V DC, mostly pre-mounted on the lift frame.
Electrical Features:
- 2-Button Handheld Remote: Comes with plug and socket for easy operation (option OAE001).
Frame Options:
- DH-VZG.01.01: Fixed frame where the platform travels straight up and down from its mounting position inside the vehicle (suitable for chassis with add-on body, not for factory-built panel vans).
- DH-VZG.01.02: Articulated frame where the platform can pivot from a travel position inside the vehicle to a work position outside, then lift/lower outside the footprint of the body (suitable for factory-built panel vans).
