Thieman Medium Duty Railgates

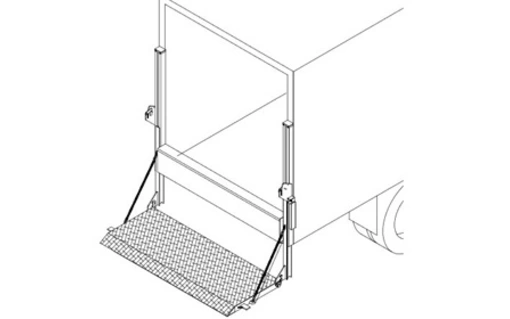

TVLR Series 1600-3000 LBS
The Thieman TVLR series offers two versatile and cost-effective railgate models designed for use on van and stake bodies, cutaways, and step-vans: the TVLR-20 and TVLR-30. Both models feature high-strength extruded aluminum platforms and Teflon composite bushings at major wear points, ensuring durability and minimal maintenance. With lifting capacities of 2000 lbs and 3000 lbs respectively, these lift gates provide reliable performance for various applications.
- Lift Mechanism: 4 x 4 leaf chain with case-hardened sheaves
- Sliders:
- TVLR-20: S3 x 5.7 I-Beam with UHMW wear pads and bottom rollers
- TVLR-30: S4 x 9.5 I-Beam with UHMW wear pads and bottom rollers
- Platform Closing: Torsion assist closing with enclosed torsion bar
- Safety Latch: Automatic safety latch for hands-free disengagement of platform both in and out of stowed position
- Controls: Molded toggle switch control
- H-Frame: 3/16 gauge construction, overall width 5″ wider than platform width
- Lift Cylinder:
- TVLR-20: 2″ bore x 27″ stroke, 1.38″ cylinder rod
- TVLR-30: 2.5″ bore x 27″ stroke, 1.38″ cylinder rod
- Platform Surface: Steel skid-resistant safety plate
- Power Unit: Electric hydraulic, 12 volt DC motor, enclosed
- Electrical: Meets all TMC electrical requirements, includes 150 amp circuit breaker
- Travel Position: Platform stores in vertical position at rear of vehicle
- Bed Height Range: 32″ loaded to 56″ empty
- Installed Weight:
- TVLR-20: 650 to 705 lbs
- TVLR-30: 715 to 790 lbs
- Options: Push button, remote pendant, in-cab shut off, light kits, bottle gas rack, 8″ / 10″ / 12″ retention ramps, expanded metal / bar grate platform, 102″ wide
- Platform Sizes:
- 90×30+5
- 90×36+5
- 90×42+5
- Ramp:
- 5″ fixed ramp

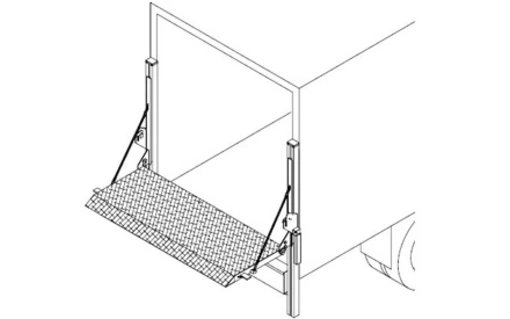

TVLRA Series 1600-3000 LBS
Featuring the TVLR-16A, TVLR-20A, and TVLR-30A, the Thieman TVLR-A series offers versatile and budget-friendly railgate models designed for van and stake bodies, cutaways, and step-vans. All models are equipped with robust extruded aluminum platforms and Teflon composite bushings at major wear points, ensuring long-lasting durability and minimal upkeep. With lifting capacities ranging from 1600 lbs to 3000 lbs, these lift gates provide reliable performance across multiple applications.
- Lift Mechanism: Roller chain and sprockets (TVLR-16A) / 4 x 4 leaf chain with case-hardened sheaves (TVLR-20A and TVLR-30A)
- Sliders:
- TVLR-16A: S3 x 5.7 I-Beam with UHMW wear pads and bottom rollers
- TVLR-20A: S3 x 7.5 I-Beam with UHMW wear pads and bottom rollers
- TVLR-30A: S4 x 9.5 I-Beam with UHMW wear pads and bottom rollers
- Platform Closing: Torsion assist closing with enclosed torsion bar
- Safety Latch: Automatic safety latch for hands-free disengagement of platform both in and out of stowed position
- Controls: Molded toggle switch control
- H-Frame: 3/16 gauge construction, overall width 5″ wider than platform width
- Lift Cylinder:
- TVLR-16A: 2″ bore x 27″ stroke
- TVLR-20A: 2″ bore x 27″ stroke, 1.38″ cylinder rod
- TVLR-30A: 2.5″ bore x 27″ stroke, 1.38″ cylinder rod
- Platform Surface: Steel skid-resistant safety plate
- Power Unit: Electric hydraulic, 12 volt DC motor, enclosed
- Electrical: Meets all TMC electrical requirements, includes 150 amp circuit breaker
- Travel Position: Platform stores in vertical position at rear of vehicle
- Bed Height Range: 32″ loaded to 46″ empty
- Installed Weight:
- TVLR-16A: 630 to 685 lbs
- TVLR-20A: 665 to 720 lbs
- TVLR-30A: 730 to 805 lbs
- Options: Push button, remote pendant, in-cab shut off, light kits, bottle gas rack, 8″ / 10″ / 12″ retention ramps, expanded metal / bar grate platform, 102″ wide
- Platform Sizes:
- 85×30+5
- 85×36+5
- 85×42+5
- 90×30+5
- 90×36+5
- 90×42+5
- Ramp:
- 5″ fixed ramp
AATVLR Series 1600 & 2000 LBS
The Thieman AATVLR series presents two flexible and cost-effective railgate models ideal for van and stake bodies, cutaways, and step-vans: the AATVLR-16 and AATVLR-20. Each model features sturdy extruded aluminum platforms and Teflon composite bushings at critical wear points, promising durability and low maintenance. With lifting capacities of 1600 lbs and 2000 lbs respectively, these lift gates offer consistent performance for various tasks.
- Lift Mechanism:
- AATVLR-16: Roller chain and sprockets
- AATVLR-20: 4 x 4 leaf chain with case-hardened sheaves
- Sliders: Extruded aluminum with top and bottom rollers
- Platform Closing: Torsion assist closing with enclosed torsion bar
- Safety Latch: Automatic safety latch for hands-free disengagement of platform both in and out of stowed position
- Controls: Molded toggle switch control
- H-Frame: Extruded aluminum, overall width 6″ wider than platform width
- Lift Cylinder:
- AATVLR-16: 2″ bore x 27″ stroke
- AATVLR-20: 2″ bore x 27″ stroke, 1.38″ cylinder rod
- Platform Surface: Extruded aluminum with ribbed surface
- Power Unit: Electric hydraulic, 12 volt DC motor, enclosed
- Electrical: Meets all TMC electrical requirements, includes 150 amp circuit breaker
- Travel Position: Platform stores in vertical position at rear of vehicle
- Bed Height Range: 32″ loaded to 56″ empty
- Installed Weight:
- AATVLR-16: 510 to 585 lbs
- AATVLR-20: 530 to 605 lbs
- Options: Push button, remote pendant, in-cab shut off, light kits, bottle gas rack, 8″ / 10″ / 12″ retention ramps, foot activated cart stop, 102″ wide, two-piece platform, special platform sizes
- Platform Sizes:
- 90×30+6
- 90×36+6
- 90×42+6
- 90×48+6
- 90×54+6
- 90×60+6
- 90×66+6
- 90×72+6
- Ramp:
- 6″ fixed ramp
