Tommy Gate Flatbed and Van

TOMMY GATE FLATBED & FAN TUCKUNDER SERIES TKT

Tuckunder Series: TKT

The Tommy Gate Tuckunder Series (TKT) is designed to meet the demanding needs of flatbed and box truck operators. With its dual-cylinder, wide-arm design, this liftgate ensures sturdy and consistent lifting action. The TKT models feature self-leveling and power-down functions, making them simple to use and highly reliable. The large platforms easily accommodate pallet-sized loads, enhancing efficiency and productivity.

  • Liftgate Capacity: Available in 2500 lbs and 3000 lbs models.
  • Hydraulic System: Dual-cylinder for robust performance.
  • Lift Style: Level-ride tuckunder design for smooth operation.
  • Maintenance: Virtually maintenance-free with a molded-plastic power unit cover for protection.
  • Control: Low-profile, fixed toggle control for easy access.
  • Durability: Includes rubber dock bumpers and adjustable steps.
  • Platform: Large platforms for accommodating various load sizes.
  • Optional Accessories: Galvanized models and bed extensions available.

  1. TP 50

    • Material: Steel treadplate
    • Dimensions: 2-piece, 50-inch deep (25″ base and 25″ flipper)

  2. TP 60

    • Material: Steel treadplate
    • Dimensions: 2-piece, 60-inch deep (30″ base and 30″ flipper)

  3. EA 50

    • Material: Extruded aluminum
    • Dimensions: 2-piece, 50-inch deep (25″ base and 25″ flipper)

  4. EA 60

    • Material: Extruded aluminum
    • Dimensions: 2-piece, 60-inch deep (30″ base and 30″ flipper)
TOMMY GATE FLATBED & FAN TUCKUNDER SERIES TKL

Tuckunder Series TKL

The Tommy Gate Tuckunder Series (TKL) is engineered for efficiency and durability, making it an ideal choice for flatbeds and box trucks. Featuring a single-cylinder, power-down design, the TKL liftgate accommodates bed heights from 33 to 47 inches. Its lightweight construction and sleek modern engineering ensure reliable performance and longevity.

  • Liftgate Capacity: 2500 lbs
  • Hydraulic System: Single-cylinder for efficient operation
  • Lift Style: Standard ride tuckunder design
  • Maintenance: Fully protected hydraulic system for minimal upkeep
  • Control: Low-profile, fixed toggle control for easy access
  • Durability: Thermal protected motor and rubber dock bumpers
  • Platform: Lightweight and compatible with low bed heights
  • Optional Accessories: Bed extensions with fixed or adjustable side steps, recessed light kit

  1. EA 33

    • Material: Extruded aluminum
    • Dimensions: 2-piece, 33-inch deep with a 4″ front and 4″ back taper (17″ base and 16″ flipper)

  2. EA 37

    • Material: Extruded aluminum
    • Dimensions: 2-piece, 37-inch deep with a 4″ front and 4″ back taper (19 1/2″ base and 17 1/2″ flipper)

  3. EA 41

    • Material: Extruded aluminum
    • Dimensions: 2-piece, 41-inch deep with a 4″ front and 4″ back taper (21 1/2″ base and 19 1/2″ flipper)
TOMMY GATE FLATBED & FAN RAILGATE SERIES HIGH-CYCLE

RailGate Series High-Cycle

The Tommy Gate Railgate Series: High-Cycle is designed for heavy-duty applications, offering exceptional durability and performance. Utilizing a steel roller and leaf-chain pulley system, this liftgate ensures smooth motion and robust strength, making it ideal for high-cycle environments. The High-Cycle models are built with the highest quality components, prioritizing function and safety.

  • Liftgate Capacity: Available in 2500 lbs and 3000 lbs models.
  • Hydraulic System: Single-cylinder for efficient operation.
  • Lift Style: Rail-style with steel rollers for smooth vertical movement.
  • Maintenance: Dual sealed, maintenance-free ball bearings for long-lasting performance.
  • Control: Low-profile, fixed toggle control with five-minute inactivity shut-off.
  • Durability: Includes rubber dock bumpers and thermal protected motor.
  • Platform: Large platforms compatible with dock loading.
  • Safety: Standard safety trip bar, auto open and close, recessed lights, and optional taper-integrated cart stops.

  1. TP36

    • Material: Treadplate steel
    • Dimensions: 1-piece, 36-inch loading depth with 12″ taper

  2. TP42

    • Material: Treadplate steel
    • Dimensions: 1-piece, 42-inch loading depth with 12″ taper

  3. TP48

    • Material: Treadplate steel
    • Dimensions: 1-piece, 48-inch loading depth with 12″ taper

  4. EA55

    • Material: Extruded aluminum
    • Dimensions: 1-piece, 55-inch loading depth with 12″ taper

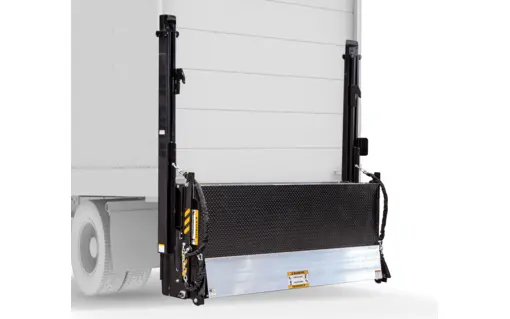

TOMMY GATE FLATBED & FAN RAILGATE SERIES bi-fold

RailGate Series Bi-Fold

The Tommy Gate Railgate Series: Bi-Fold is engineered for versatility and high performance, making it an excellent choice for flatbeds and box trucks. These high-cycle models support large steel platforms and high lifting capacities while remaining completely dock-compatible. The bi-fold platform design allows for easy loading and unloading in any location, enhancing operational efficiency.

  • Liftgate Capacity: Available in 2500 lbs and 3000 lbs models.
  • Hydraulic System: Single-cylinder for efficient operation.
  • Lift Style: Rail-style with steel rollers for smooth vertical movement.
  • Maintenance: Dual sealed, maintenance-free ball bearings for long-lasting performance.
  • Control: Low-profile, fixed toggle control with five-minute inactivity shut-off.
  • Durability: Includes rubber dock bumpers and thermal protected motor.
  • Platform: Large bi-fold platforms compatible with dock loading.
  • Safety: Standard safety trip bar, auto open and close, recessed lights, and optional taper-integrated cart stops.

  1. TP60

    • Material: Steel treadplate with aluminum retention ramp
    • Dimensions: Two-piece, 30-inch base and 30-inch foldout with 13-inch tapered ramp

  2. TP70

    • Material: Steel treadplate with aluminum retention ramp
    • Dimensions: Two-piece, 35-inch base and 35-inch foldout with 13-inch tapered ramp

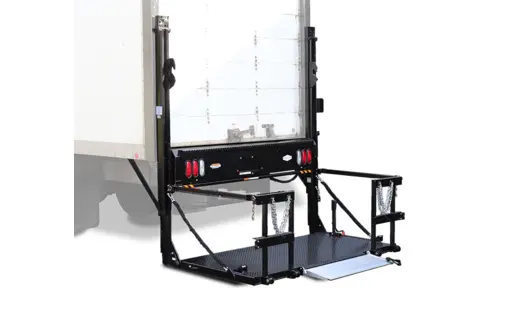

TOMMY GATE FLATBED & FAN RAILGATE SERIES HIGH-CYCLE GBR

Railgate Series High-Cycle GBR

The Tommy Gate Railgate Series: High-Cycle GBR is specifically designed for gas cylinder transporters, offering exceptional durability and performance. Featuring a single-cylinder hydraulic system and steel roller and leaf-chain pulley mechanism, this liftgate ensures smooth and reliable operation. The High-Cycle GBR models incorporate a platform drop-down function, allowing seamless loading and unloading in any location.

  • Liftgate Capacity: Available in 2500 lbs and 3000 lbs models.
  • Hydraulic System: Single-cylinder for efficient operation.
  • Lift Style: Rail-style with steel rollers for smooth vertical movement.
  • Maintenance: Dual sealed, maintenance-free ball bearings for long-lasting performance.
  • Control: Low-profile, fixed toggle control with five-minute inactivity shut-off.
  • Durability: Includes rubber dock bumpers and thermal protected motor.
  • Platform: Folding gas bottle rack platforms compatible with dock loading.
  • Safety: Standard safety trip bar, auto open and close, recessed lights, and optional taper-integrated cart stops.

  1. GBR30

    • Material: Steel treadplate with gas bottle rack
    • Dimensions: One-piece, 30-inch loading depth with 12-inch taper

  2. GBR42

    • Material: Steel treadplate with gas bottle rack
    • Dimensions: One-piece, 42-inch loading depth with 15-inch taper

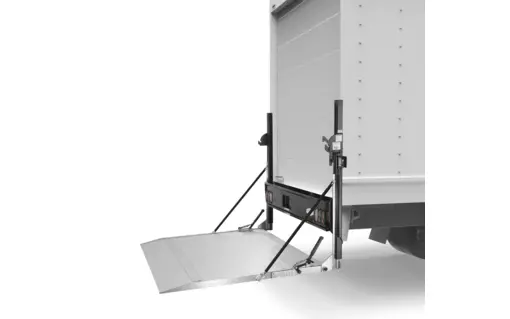

TOMMY GATE FLATBED & FAN RAILGATE SERIES STANDARD

RailGate Series Standard

The Tommy Gate Railgate Series: Standard is expertly engineered to handle higher weight capacities and deeper platform loading areas, making it an ideal choice for flatbeds and box trucks. These liftgates employ a padded-slider system and are available in both steel and aluminum frames, ensuring durability and versatility for various applications.

  • Liftgate Capacity: Available in 1600 lbs and 2000 lbs models.
  • Hydraulic System: Single-cylinder for efficient operation.
  • Lift Style: Rail-style with padded sliders for smooth vertical movement.
  • Maintenance: Dual sealed, maintenance-free ball bearings for long-lasting performance.
  • Control: Low-profile, fixed toggle control with five-minute inactivity shut-off.
  • Durability: Includes rubber dock bumpers and thermal protected motor.
  • Platform: Large platforms compatible with dock loading.
  • Safety: Standard safety trip bar, auto close, and recessed lights.
  • Optional Features: Above-bed capability for dock loading and all-aluminum models for corrosion resistance.

  1. TP37

    • Material: Treadplate steel
    • Dimensions: 1-piece, 37-inch loading depth with 6-inch taper

  2. TP42

    • Material: Treadplate steel
    • Dimensions: 1-piece, 42-inch loading depth with 6-inch taper

  3. GBR

    • Material: Treadplate steel with retention fence
    • Dimensions: 1-piece, 30-inch loading depth with 12-inch taper

  4. EA55

    • Material: Extruded aluminum
    • Dimensions: 1-piece, 55-inch loading depth with 12-inch taper
TOMMY GATE RAILGATE SERIES DOCK-FRIENDLY

RailGate Series Dock-Friendly

The Tommy Gate Railgate Series: Dock-Friendly Liftgates are designed to enhance efficiency and safety in loading and unloading operations for flatbeds, box trucks, straight trucks, and van bodies. These liftgates feature innovative folding “RF” platforms that can be positioned to avoid obstruction during forklift or dock loading, making them ideal for busy loading bays.

  • Dock-Friendly Platforms: The folding platforms can be lowered vertically, allowing easy access for dock or forklift loading.
  • Drop-Away Function: The “drop away” position enables the platform to be moved out of the way for direct dock loading.
  • Above-Bed Travel: Standard above-bed capability allows the platform to rise above the liftgate mainframe to meet additional dock height requirements.
  • Liftgate Capacity: Available in 1600 lbs and 2000 lbs capacities to handle various loading needs.
  • Hydraulic System: Equipped with a single-cylinder hydraulic system for reliable performance.
  • Rail Style: Features padded sliders for smooth operation.
  • Maintenance-Free Bushings: Ensures long-lasting durability with minimal upkeep.
  • Closure-Assist Torsion Bar: Facilitates easy and secure closure of the liftgate.

  1. RF 45-6

    • Material: Two-piece Extruded Aluminum
    • Loading Depth: 45″
    • Flipper: 15″
    • Taper: 6″
    • Base Height: 30″

  2. RF 45-12

    • Material: Two-piece Extruded Aluminum
    • Loading Depth: 45″
    • Flipper: 10″
    • Taper: 12″
    • Base Height: 35″

  3. RF 50-6

    • Material: Two-piece Extruded Aluminum
    • Loading Depth: 50″
    • Flipper: 15″
    • Taper: 6″
    • Base Height: 35″
TOMMY GATE V2 SERIES

V2 Series

The Tommy Gate V2 Series: V2-45 Liftgate represents the latest in liftgate technology, designed to maximize platform loading area while occupying minimal space when stored in the rear of van bodies. This liftgate combines sleek, modern engineering with practical features to enhance efficiency and safety in loading and unloading operations.

  • Liftgate Capacity: 1100 lbs, suitable for various loading needs.
  • Hydraulic System: Dual-cylinder system ensures reliable and smooth operation.
  • Internally-Mounted: The liftgate is mounted inside the van body, saving external space.
  • Platform Auto Open & Close: Hands-free operation for convenience and efficiency.
  • Dual-Function Control: Pendant control with raise/lower toggle and secondary platform fold function.
  • Retention Ramp/Taper: Built-in cart retention ramp and flat-loading taper minimize load angle and secure wheel-based cargo.
  • Aluminum Treadplate Bridge: Durable and lightweight for long-lasting performance.
  • Low-Profile Pump & Motor Box: Compact design to maximize space efficiency.
  • Material: One-piece Steel-Framed Aluminum
  • Loading Depth: 49″
  • Loading Taper: 9″
  • Retention Ramp: Included
TOMMY GATE G2 SERIES

G2 Series

The Tommy Gate G2 Series Liftgates are engineered to provide robust and reliable lifting solutions for flatbeds, box trucks, straight trucks, and van bodies. These liftgates are designed with a dual-cylinder, parallel-arm system that ensures smooth and efficient operation, making them ideal for a wide range of industrial applications.

  • Liftgate Capacity: Available in 1000 lbs to 2000 lbs capacities to handle various loading needs.
  • Hydraulic System: Dual-cylinder system for balanced and powerful lifting.
  • Parallel-Arm Design: Ensures stability and smooth operation during lifting and lowering.
  • Larger Platforms: Supports larger platform sizes to accommodate different cargo types.
  • Fully-Enclosed Hydraulic System: Protects components from the elements and reduces maintenance needs.
  • Recessed Control: Conveniently located control panel for easy operation.
  • Hitch Compatibility: Designed to be compatible with various hitch configurations.
  • Virtually Maintenance-Free Components: Built with durable materials to minimize upkeep.

  1. TP35

    • Material: One-piece steel treadplate
    • Loading Depth: 35″
    • Taper: 6″

  2. TP41

    • Material: One-piece steel treadplate
    • Loading Depth: 41″
    • Taper: 6″

  3. TT33

    • Material: One-piece steel TommyTraction
    • Loading Depth: 33″
    • Taper: 6″
    • Availability: Only available in 1300 lb. & 1600 lb. G2

  4. EA37

    • Material: One-piece extruded aluminum
    • Loading Depth: 37″
    • Taper: 6″

  5. EA41

    • Material: One-piece extruded aluminum
    • Loading Depth: 41″
    • Taper: 6″

  6. BG33

    • Material: One-piece steel bar grate
    • Loading Depth: 33″
    • Taper: 6″
    • Availability: Only available in 1300 lb. & 1600 lb. G2

  7. TP38

    • Material: One-piece steel treadplate
    • Loading Depth: 38″
    • Taper: 4 1/2″

  8. EA38

    • Material: One-piece extruded aluminum
    • Loading Depth: 38″
    • Taper: 6″

  9. Low Profile – TP38

    • Material: Two-piece steel treadplate
    • Loading Depth: 38″
    • Taper: 4″

  10. Low Profile – EA38

    • Material: Two-piece extruded aluminum
    • Loading Depth: 38″
    • Taper: 6″
