Switch N Go Dump Bodies
Carbon Steel
The Switch-N-Go® Dump Body is designed for efficient material handling and transportation, offering robust construction and practical features to enhance functionality and ease of use. This truck body system is ideal for various applications, providing durability and versatility.
- High-Quality Finish: Zinc epoxy prime and powder-coated finish for enhanced durability and corrosion resistance.
- Ramp Gate: Provides drive-on convenience for easy loading and unloading.
- Salt Spreader Compatibility: Accepts underbody salt spreader for winter maintenance.
- Side and Tailgate Heights: 12″ side height and 24″ tailgate height for optimal capacity.
- Ground Rollers: Standard 6″ steel dump body ground rollers for easy maneuverability.
- Custom Options: Various custom options available to tailor the dump body to specific needs.
- Sizes: Available in lengths from 8′ to 14′ with a width of 94″.
- Side Heights: Inside heights of 39″, 44″, or 51″.
- Floor: Standard duty uses 10 GA steel; heavy duty uses 3/16” steel.
- Crossmembers: Standard duty uses 3” structural channel, 16” on center; heavy duty uses 3” structural channel, 12” on center.
- Sides: Standard duty uses 12 GA steel; heavy duty uses 10 GA steel.
- Top Rail: 3” x 3” x 1/8” tubing.
- Tailgate: 2” x 2” x 3/16” tubing with 10 GA sheet.
Options:
- Drop Down Sides: For added convenience.
- Cab Shield: Optional 18” cab shield for additional protection.
- Coal Chute: Optional for specific material handling needs.
- Welded D-Rings: For secure attachment points.

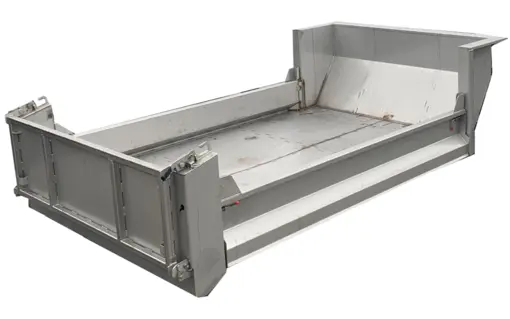

Stainless Steel
The Switch-N-Go® Stainless Steel Dump Body is engineered to deliver superior performance and corrosion resistance in the toughest environments. Constructed entirely from 10-gauge 304 stainless steel, this dump body is ideal for hauling, dumping, and transporting materials with ease and reliability.
- Superior Corrosion Protection: 304 stainless steel construction ensures long-lasting durability.
- Double Acting Tailgate: Enhances control and flexibility during dumping operations.
- Manual Front Release: Simple and efficient operation.
- Bottom Painted Black: For added protection and a sleek finish.
- Body Lengths: 11′ and 14′
- Width: 96″
- Side Height: 14″
- Tailgate Height: 26″
- Bulkhead Inside Height: 39″ or 51″
- Board Pockets: 6″ high
- D-Rings: One on each corner for secure tie-downs
- Floor, Sides, Front, Tailgate: 10 GA 304 stainless steel
Optional Features:
- Drop Down Sides
- 18” Cab Shield
- Coal Chute
- Welded D-Rings

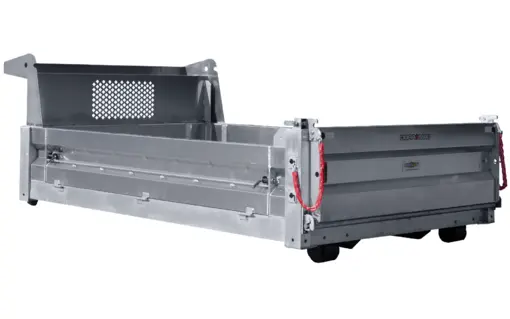

Aluminum
The Switch-N-Go® Aluminum Dump Body is designed for efficient material handling and transportation, offering a lightweight build and superior corrosion resistance. This truck body system is ideal for various applications, providing durability and versatility.
- Lightweight Build: Allows for additional payload capacity.
- Superior Corrosion Resistance: Constructed from 5052 aluminum for enhanced durability.
- Double Acting Ramp/Dump Gate: Provides versatility for different loading and unloading requirements.
- Manual Front Release Tailgate: Allows for easy operation and control.
- Single Piece Floor: Ensures structural integrity and durability.
- Double Walled Sides: Provides added strength and durability.
- Compatibility: Compatible with 11’ Switch-N-Go® hoist systems.
- Floor: Made from 1/4” 5052 aluminum.
- Crossmember Spacing: 3” I-beams on 14 3/4” centers.
- Sides/Front/Tailgate: Made from 5052 aluminum.
- Tailgate Height: 18”.
- Side Height: 12”.
- Bulkhead Inside Height: 38” with window (48” for high truck cabs).
- Board Pocket Heights: 6” for tailgate and bulkhead.
- Volume: 3 cubic yards.
Options:
- Fold Down Sides: Optional for added convenience.
- Drop Down Sides: Optional for specific material handling needs.
