Switch N Go Subframe Bodies

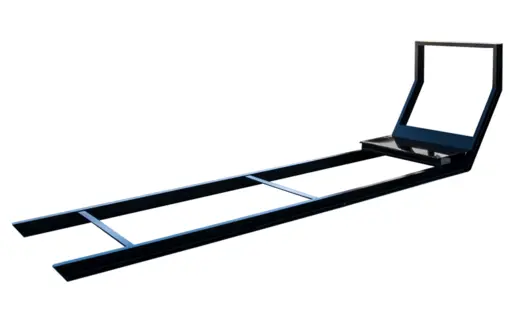

Standard Subframes
Introducing the Subframe, designed to enhance your truck’s capabilities with unmatched durability and versatility. Perfect for custom upfits, this subframe is engineered to meet all your needs.
- Reinforced Plate: 7 GA with plate and 4” structural channel.
- Outer Rail:
- 11’ Subframe: 4” x 5.4# channel
- 16’ Subframe: 5” x 6.7# channel
- Crossmembers: 3” structural channel on 13” centers.
- System Compatibility:
- 11’ Subframe: Compatible with 11’ systems
- 16’ Subframe: Compatible with 14’ systems
Workready Subframes
Introducing the WorkReady™ Subframe, your ultimate solution for enhanced truck performance and versatility. Engineered to deliver superior durability and functionality, this subframe is perfect for a wide range of applications.
- High-Quality Finish: Zinc epoxy prime and polyester topcoat for superior durability.
- Maximized Payload: Engineered to maximize legal payload capacity.
- Material Build-Up Prevention: Expanded metal cut-outs to prevent material accumulation.
- High Load Capacity: Supports up to 16,500 lbs maximum load.
- Enhanced Visibility: Simple framed bulkhead design.
- Non-Slip Surface: Features a non-slip surface with side cut-outs for safety.
- Lengths Available: 9’, 11’, 12’, and 14’.
- Maximum Load Limit: 16,500 lbs.
- Attachment Points: Four D-rings rated at 4080 lbs, located in each corner.
- Floor: 1/8” diamond plate with expanded metal floor cut-outs.
- Retractable Legs: Legs retract and stow (available for 9’ and 11’ lengths only).
- Dimensions: 35 1/8” wide x 9” rear cutout.

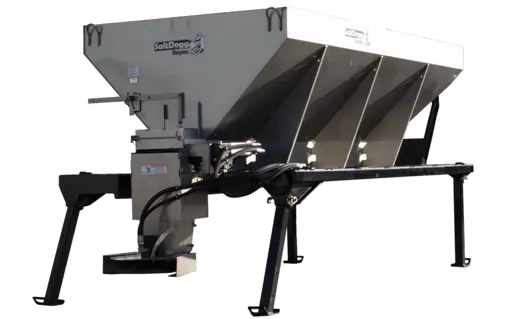

Salt Spreader Subframes
Introducing the Salt Spreader Body, designed to provide superior performance and efficiency for all your winter maintenance needs. Engineered for optimal weight distribution and durability, this salt spreader is the perfect addition to your fleet.
- Superior Weight Distribution: Designed for optimal weight distribution compared to non-specialized upfits.
- Stainless Steel V-Box: 4.8 cubic yard capacity made from 304 stainless steel.
- Angled Front Extension: 12″ angled front extension for improved functionality.
- Rear Cutout: 9″ rear cutout for conveyor integration.
- Sloped Front Design: Ensures efficient material flow.
- Retractable Legs: Allows for interchangeability and storage without removing the chute.
- High Load Capacity: Supports up to 16,500 lbs maximum load.
- Material Build-Up Prevention: Expanded metal subframe floor cut-outs to prevent material accumulation.
- Available Models: Electric and hydraulic.
- Length: 11’ only.
- Working Load Limit: 16,500 lbs.
- Spreader Capacity: 4.8 cubic yards.
- Attachment Points: Four D-rings rated at 4,080 lbs each.
- Floor: 19” wide expanded metal sides and 40” wide diamond sheet center.
- Rear Cutout Dimensions: 35 1/8” wide x 9” deep.
- Legs: Unpin and retract for easy storage.
- Spreader Spinner: 1/2 HP, 12V motor with direct mount HD spreader.
- Spreader Conveyor: 3/4 HP, 12V motor with 20:1 worm gearbox.
