eXmark Stand On Mowers

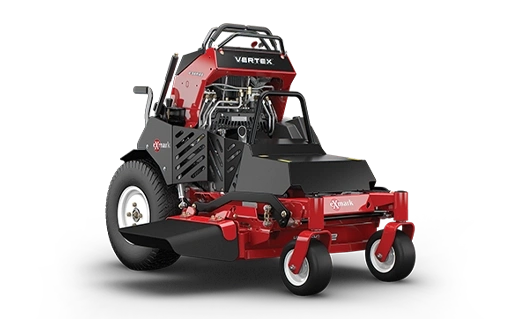

Vertex – E
Exmark’s new Vertex E-Series stand-on mower is a more productive option when compared to a walk-behind mower for gated back yards and other areas with limited access. Available in 32- or 36-inch models, the Vertex E-Series is ideal for contractors looking for a compact stand-on mower with next-level versatility, maneuverability, and quality of cut. Plus, with legendary Exmark durability, reliability, and dealer support, Vertex E-Series is in it for the long haul.
- Mower Deck Widths: 32″ 36″
- Width 44.9
- Height 47.3
- Length 58.103
- Curb Weight 702
- Steering ControlTwin levers with adjustable front reference bar to modify forward ground speed.
- Front Caster Tires9 x 4.50-5, smooth-tread, semipneumatic tires with sealed ball bearings.
- Drive Tires21x7.00-10 Kenda K506
- Parking BrakeLever-actuated bar brake.
- Tractor FrameWelded, heavy-duty 1.5″ x 3″ tubular steel.
- Blade SpindlesNo maintenance, sealed and nongreasable spindles; 7.75″ diameter cutter housing with 1.75″ diameter splined blade driver 1.0″-diameter spindle shaft.
- Electrical12-volt battery with 15-amp alternator.
- Cup Holder No
- Standard FeaturesEngine Hour Meter

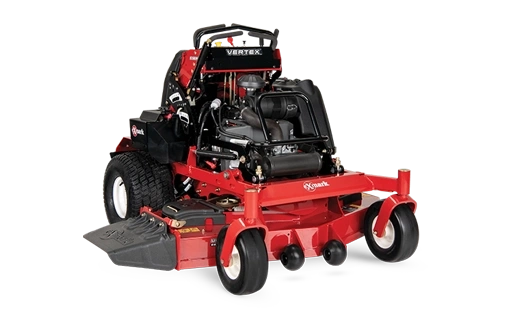

Vertex – S
- Mower Deck Widths: 48″ 52″ 60″
- Width 60.05
- Height 49.2
- Length 65.33
- Curb Weight 925
- StarterElectric
- Steering ControlTwin levers with center fixed reference bar for ease of control forward and reverse
- Front Caster Tires20x10.0-8 Carlisle Turf Master
- Drive Tires12 x 5.0-6, smooth-tread, semipneumatic tires with tapered roller bearings.
- Parking BrakeLever-actuated bar brake.
- Tractor FrameWelded, heavy-duty 1.5″ x 2.5″ tubular steel.
- Blade SpindlesNo maintenance, sealed and nongreasable spindles; 7.75″ diameter cutter housing with 1.75″ diameter splined blade driver 1.0″-diameter spindle shaft.
- Electrical 12-volt battery with 20-amp alternator.
- Cup Holder Yes
- Standard FeaturesEnhanced Engine Hour Meter

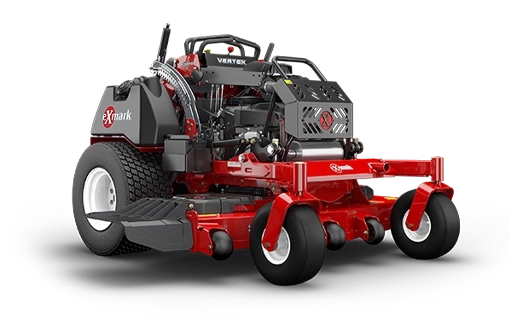

Vertex – X
The new Vertex X-Series takes Exmark stand-on mower power, productivity, and durability to the next level. Experience Exmark’s signature cut quality with a choice of 52- 60-, or 72-inch UltraCut Series 6 cutting decks, with superior operator comfort and control to make quick work of big jobs. Designed to eliminate in-season maintenance, the Vertex X-Series delivers maximum uptime, so you can maximize your revenue and profitability.
- Mower Deck Widths: 52″ 60″ 72″
- Width 64.79
- Height 48.75
- Length 70.45
- Curb Weight 1250
- StarterElectric
- Steering ControlTwin levers with center fixed reference bar for ease of control forward and reverse
- Front Caster Tires15 x 6.0-6, smooth-tread, semipneumatic tires with tapered roller bearings.
- Drive Tires24x9.0-12 Hoosier Grass Master
- Parking BrakeLever-actuated internal motor brake
- Tractor FrameWelded, heavy-duty 1.5″ x 3.0″ tubular steel.
- Blade SpindlesNo maintenance, sealed and nongreasable spindles; 7.75″ diameter cutter housing with 1.75″ diameter splined blade driver 1.0″-diameter spindle shaft.
- Cup Holder Yes
- Electrical 12-volt battery with 30-amp alternator.
- Standard FeaturesEnhanced Engine Hour Meter

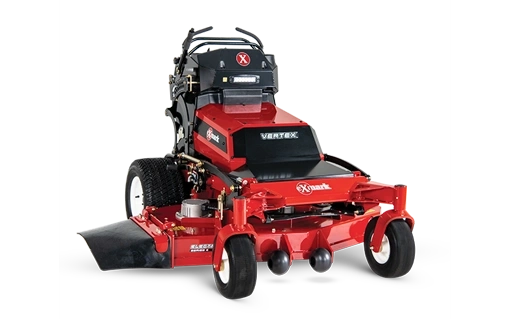

Vertex – V
The all-new Vertex V-Series is ready to take electric mower performance, cut quality and durability to an entirely new level. The HyperCell power system and patent-pending software deliver up to seven hours of runtime per charge, with a fully connected experience thanks to Horizon360 Connect remote software.
- Mower Deck Widths: 52″
- Width 65
- Height 49.75
- Length 77.25
- Curb Weight 1158
- Steering ControlTwin levers with front and rear reference bar. Max speed adjustable via control panel.
- Front Caster Tires13 x 5.0-6, smooth-tread, semi-pneumatic tires with tapered roller bearings.
- Drive Tires20x10.0-10 Hoosier Turf Tech TL
- Parking BrakeAutomatic Electric brake.
- Tractor FrameWelded, heavy-duty 1.5″ x 3.0″ tubular steel.
- Blade SpindlesNo maintenance, sealed and non-greasable powered spindles; 9 in / 22.9 cm Diameter Die-Cast
- Aluminum w/ Blade Retainer
- Cup Holder Yes
- Electrical60-volt max 18.4kWh lithium-ion Hypercell battery pack
