eXmark Zero Turn Diesel Mowers
Straight Deck

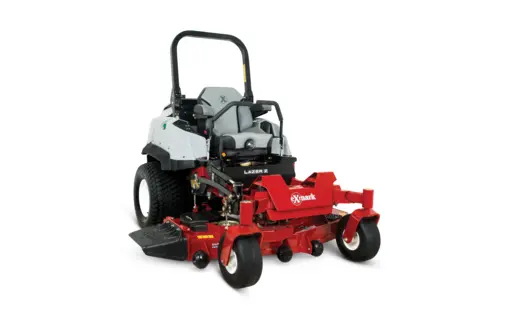

For top productivity, durability, and cut quality, choose the Exmark Lazer Z Diesel zero-turn mower with a 60-inch UltraCut™ deck. Powered by a Yanmar diesel engine, it delivers a high-quality cut and reaches speeds up to 12.5 MPH. This mower is designed for maximum efficiency and performance
- Width: 72.8 in. (184.9 cm)
- Height: 71.8 in. (182.4 cm)
- Length: 96.43 in. (244.9 cm)
- Curb Weight: 1915 lbs
- Engine Brand: Yanmar
- Engine Model: 3TNV80FT
- Engine Displacement: 1267 cc
- Engine Series: TNV
- Engine Spec: ZMTR1
- Engine Speed: 2,600 RPM
- Fuel System: Electronically Governed IDI Turbo Diesel
- Fuel Type: Diesel
- Fuel Capacity: 12-gallon (45.4-L), side fuel tanks
- Transmission: Hydrostatic, Kanzaki KPS-18T
- Drive: Hydro-Drive
- Drive Description: 16-quart oil capacity, spin-on filter, 18 cc shoe type pumps, 17.84 cubic inch Hydro-Gear HGM-18 motors, hydraulic oil cooler
- Transmission Speeds: Infinitely variable
- Speed: 0–11.0 mph (18 km/h) forward, 0–6 mph (10 km/h) reverse
- PTO Engagement: Integrated wet clutch system in transmission, connected to right angle gearbox on deck via drive shaft
- Drive Wheel Release: Allows unit movement without engine running
- Fuel Indicator: Mechanical float type
- Air Filter: Heavy-duty canister air filtration system with electronic vacuum sensor
- Deck Lift: Hydraulic
- Carb Compliant: Yes
- Safety Package: Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators
- ROPS: 2-post foldable ROPS standard with seat belt and latch
Folding Deck
For top productivity, durability, and cut quality, choose the Exmark Lazer Z Diesel zero-turn mowers. With the 144-inch UltraCut™ Flex Wing deck, it mows 11.5 acres per hour, making it Exmark’s most productive mower. Powered by a Yanmar diesel engine, it reaches speeds up to 12.5 MPH with the 96″ deck. Available with 96 and 144-inch decks, the flex wings pivot 20-degrees up and 15-degrees down on slopes.
- Width: 144.9 in. (368 cm), 84 in. (213 cm) when folded at 3 in. height of cut (HOC)
- Height: 72.6 in. (184.3 cm)
- Length: 101.3 in. (257.3 cm)
- Curb Weight: 3250 lbs
- Engine Brand: Yanmar
- Engine Model: 3TNV86CT
- Engine Displacement: 1568 cc
- Engine Series: TNV
- Engine Spec: DTR2
- Engine Speed: 3,000 RPM
- Fuel System: Common Rail Diesel with fuel cooler
- Fuel Type: Diesel
- Fuel Capacity: 12-gallon (45.4-L), side fuel tanks
- Transmission: Hydrostatic, Kanzaki KPS-18T
- Drive: Hydro-Drive
- Drive Description: 14-quart oil capacity, spin-on filter, 18 cc shoe type pumps, 1.83/1.09 cubic inch 2 speed Danfoss axial piston motors, Omni planetary gear reduction, hydraulic oil cooler
- Transmission Speeds: Infinitely variable
- Speed: 0–10 mph (16 km/h) low speed forward, 0-6 mph (10 km/h) reverse, 0-17 mph (27 km/h) high speed forward, 0–10 mph (16 km/h) reverse
- PTO Engagement: Integrated wet clutch system in transmission, connected to right angle gearbox on deck via drive shaft
- Drive Wheel Release: Allows unit movement without engine running
- Fuel Indicator: Mechanical float type
- Air Filter: Heavy-duty canister air filtration system with electronic vacuum sensor
- Deck Lift: Hydraulic
- Carb Compliant: Yes
- Safety Package: Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators
- ROPS: 2-post foldable ROPS standard with seat belt and latch
